Product Overview
The most comprehensive coverage and functionality for Agricultural Equipment in North America. Reduce downtime, repair and maintenance related expenses with Jaltest Agricultural Equipment Software.
- Information on connectors: Jaltest informs you about which connector to use and its location on the vehicle. Location on buses by bodybuilder.
- Diagnosis: Recording and description of the errors registered on each of the control units. Automatic detection of the complete errors list on the systems integrated on the vehicle.
- Actuation of Components: Possibility of interacting and sending orders on the different systems using Jaltest: such as fan activation, cylinders cutout, compression test and operational checking of the different mechanisms, etc.
- Values Measuring: Measuring and Displaying of up to 8 values at the same time. Information on the ranges of reference values.
- Parameters: Configuration of the different parameters.
- System data: Information on the system configuration and ECU data.
- Errors clearance: Errors clearance on the control unit and turning off of failure lamps.
Protocols:
- OBD
- OBDII
- J1939
- J1708
- EURO IV
- EURO V
- RP1210

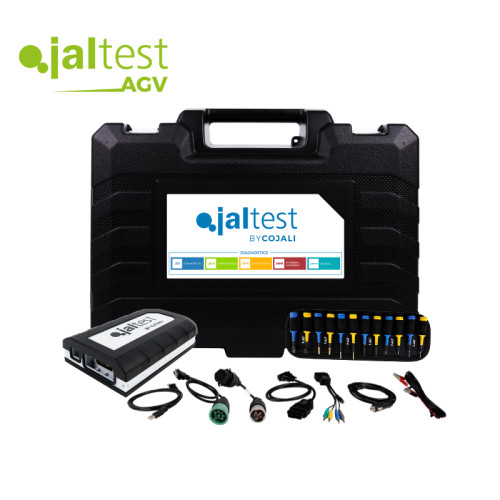

Kit includes:
- Jaltest Link RP 1210 Kit w/ Multi-Pin Set (Part #29366)
- Ag Software License w/ 1 Year of Activation (Part #29762 & 29761)
- Jaltest AGV Cable Set (Part # 29758)
- Jaltest Info Online Annual (Part # 29427)
- Training
Coverages:
- 35,000+ Diagnostic Trouble Codes -including OEM Proprietary Codes
- 40 brands of equipment & component manufacturers
- 360 Models of Components & Equipment
- 3,200+ Electronic Control Modules
- Engines
- Transmissions
- Traction Control
- Instrument Cluster, Body & Chassis Controllers
- Safety Systems
- Anti-theft & Security Systems
- Steering Systems
- Telematics Modules
- Tire Pressure Monitoring System
- Combine, Head & Tail Control Units
- PTO Systems
- Electronic Modules
Functionality
- 6,500+ Bi-Directional Testing Procedures
- 2,500+ Troubleshooting and Repair Guides linked to Diagnostic Trouble Codes
- 1,700+ Circuit Diagrams
- 15,000+ Symptom Diagnostic Troubleshooting Guides
- 8,000+ Technical Specification Data Resources (Electrical Systems)
- 1,600+ System Technical Data Specifications (Mechanical and Electrical systems)
- 2,000+ Fields for Condition Based Maintenance PM and Service Scheduling Processes
- 1,000+ Calibrations
- Jaltest Report Includes Vehicle, Operational and Diagnostic Information
