Product Overview
| Part # | Model | Capacity | Wheel | Weight | Width | Height | Depth | Drum Type |
| 240009 | 5BT | 1000 lbs | (2) 10" Moldon Rubber | 68 lbs | 24.5" | 62" | 17" | Steel Drums |
| 240010 | 5BTW | 1000 lbs | (2) 10" Polyolefin | 53 lbs | 24.5" | 62" | 14.5" | Steel Drums |
| 240013 | 10BT | 1000 lbs | (2) 10" Moldon Rubber | 64 lbs | 24.5" | 61" | 14.5" | Steel Drums |
| 240014 | 10BTW | 1000 lbs | (2) 10" Polyolefin | 50 lbs | 24.5" | 51" | 14.5" | Steel Drums |
| 240001 | 15BT | 1000 lbs | (2) 10" Moldon Rubber, (2) 6" Moldon Rubber | 79 lbs | 24" | 58" | 21" | Steel Drums |
| 240002 | 15BTW | 1000 lbs | (2) 10" Polyolefin, (2) 6" Polyolefin | 61 lbs | 24" | 58" | 21" | Steel Drums |
| 240121 | 15BTC | 1000 lbs | (2) 10" Moldon Rubber, (2) 6" Moldon Rubber Swivel Casters | 79 lbs | 24" | 58" | 21" | Steel Drums |
| 240003 | 20BT | 1000 lbs | (2) 10" Moldon Rubber | 74 lbs | 23.5" | 60" | 17" | Steel Drums |
| 240004 | 20BTW | 1000 lbs | (2) 10" Polyolefin | 59 lbs | 23.5" | 60" | 17" | Steel Drums |
| 240005 | 30BT | 1000 lbs | (2) 10" Moldon Rubber, (2) 6" Moldon Rubber | 82 lbs | 24" | 56" | 20.5" | Steel Drums |
| 240006 | 30BTW | 1000 lbs | (2) 10" Polyolefin, (2) 6" Polyolefin | 66 lbs | 24" | 56" | 20.5" | Steel Drums |
| 240081 | 40BT | 1000 lbs | (2) 10" Moldon Rubbber | 82 lbs | 23.75" | 59.75" | 24" | Poly Drums |
| 240076 | 40BTW | 1000 lbs | (2) 10" Polyolefin | 67 lbs | 23.75" | 59.75" | 24" | Poly Drums |
| 240082 | 45BT | 1000 lbs | (2) 10" Moldon Rubber | 82 lbs | 24" | 59.75" | 24" | Poly Drums |
| 240077 | 45BTW | 1000 lbs | (2) 10" Polyolefin | 67 lbs | 24" | 59.75" | 24" | Poly Drums |
| 240083 | 50BT | 1000 lbs | (2) 10" Moldon Rubber, (2) 6" Moldon Rubber | 86 lbs | 24" | 57.5" | 25" | Poly Drums |
| 240078 | 50BTW | 1000 lbs | (2) 10" Polyolefin, (2) 6" Polyolefin | 65 lbs | 24" | 57.5" | 25" | Poly Drums |

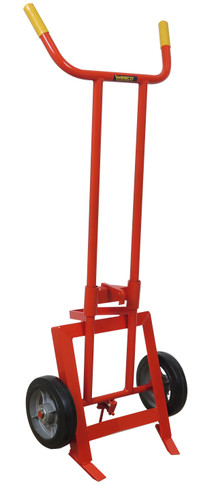

Model 5BT & 5BTW Economy Series Drum Hand Trucks:
- Heavy duty, double-welded joints, 1" structural pipe frame.
- Handles 55 and 85 gallon steel drums.
- Kickstands to store upright.
- With wheels resting on floor, 22" to center of lowered chime hook.
- Steel drums only.
Model 10BT & 10BTW Standard Series Drum Hand Trucks:
- Heavy duty, double-welded joints, 1" structural pipe frame.
- Handles 55 and 85 gallon steel drums.
- Kickstands to store upright.
- Machined steel load wheels behind nose prongs help ease the lifting of the drum.
- With wheels resting on floor, 22" to center of lowered chime hook.
- Steel drums only.
Model 15BT, 15BTW, & 15BTC Deluxe Series Drum Hand Trucks:
- Heavy duty, double-welded joints, 1" structural pipe frame.
- Handles 55 and 85 gallon steel drums.
- Kickstands to store upright.
- Four wheel design enables user to quickly and easily load and unload drums from pallet.
- With two wheels resting on floor, 20.5" to center of lowered chime hook.
- Steel drums only.
- 15BTC (only) handles 30, 55, and 85 gallon steel drums
Model 20BT & 20BTW Deluxe Series Drum Hand Trucks:
- Heavy duty, double-welded joints, 1" structural pipe frame.
- Handles 55 and 85 gallon steel drums.
- Kickstands to store upright.
- Floating axle reduces effort required to break over and balance load.
- Chime hook can be stored at the top of the frame for easy use.
- Steel drums only.
Model 30BT & 30BTW Standard Series Drum Hand Trucks:
- Heavy duty, double-welded joints, 1" structural pipe frame.
- Handles 30, 55 and 85 gallon steel, poly or fiber drum, according to model.
- Self standing or with kick stand for upright storage.
- Multi-functional drum truck allows you to move drums on four wheels and acts as a drum cradle for storage or dispensing.
- 16.5" drain height.
- With two wheels resting on floor, 28" to bottom of lowered chime hook.
Model 40BT & 40BTW Series Drum Hand Trucks:
- Heavy duty, double-welded joints, 1" structural pipe frame.
- Handles 30, 55 and 85 gallon steel, poly or fiber drum, according to model.
- Self standing
- Handles all poly and fiber drums except overpacks (use 45BT for overpacks).
- Floating axle reduces effort required to break over and balance load.
- With wheels resting on floor, 28" to bottom of belt.
- Steel, poly & fiber drums.
Model 45BT & 45BTW Series Drum Hand Trucks:
- Heavy duty, double-welded joints, 1" structural pipe frame.
- Handles 30, 55 and 85 gallon steel, poly or fiber drum, according to model.
- Self standing
- Recommended primarily for handling of overpacks.
- Wide "feet" eliminate the risk of drums being punctured by nose prongs.
- Floating axle reduces effort required to break over and balance load.
- With wheels resting on floor, 28" to bottom of belt.
- Poly Drums Only
Model 50BT & 50BTW Series Drum Hand Trucks:
- Heavy duty, double-welded joints, 1" structural pipe frame.
- Handles 30, 55 and 85 gallon steel, poly or fiber drum, according to model.
- Self standing or with kick stand for upright storage.
- Acts as a Poly Drum Truck or Drain Stand.
- Wide "feet" and belt eliminate the risk of drums being punctured by nose prongs and chime hooks.
- With two wheels resting on floor, 32" to center of belt.
- Handles all poly drums (except overpacks).
- Steel, poly & fiber drums.
