Product Overview

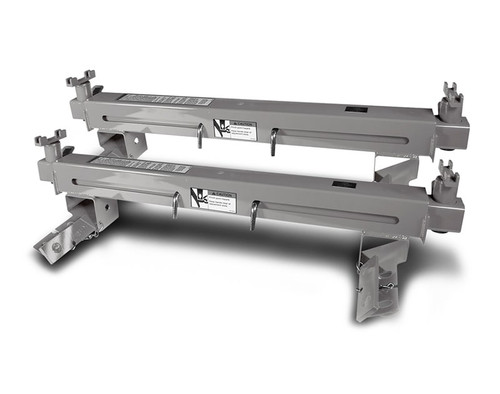

Ford Cab Adapter
Model Number: CAD-15FCO | Part Number: 485 80132 00
- Maximum Capacity 1,500 lb Each / 680 kg Each
- Overall Width 12 in / 30.5 cm
- Overall Length 69.5 in / 176.5 cm
- Minimum Starting Height 10 in / 25.4 cm
- Minimum Lift Saddle Spread-Center to Center 40 in / 101.6 cm
- Maximum Lift Saddle Spread-Center to Center 65.5 in / 166.6 cm
- Minimum Lift Saddle Clearance from Cross Member 1.5 in / 3.8 cm
- Maximum Lift Saddle Clearance from Cross Member w/ Extension 4.75 in (9.75 in) / 12 cm (24.8 cm)
- Lift Saddle Opening 0.5 in / 1.3 cm
- Shipping Weight 55 lbs / 25 kg

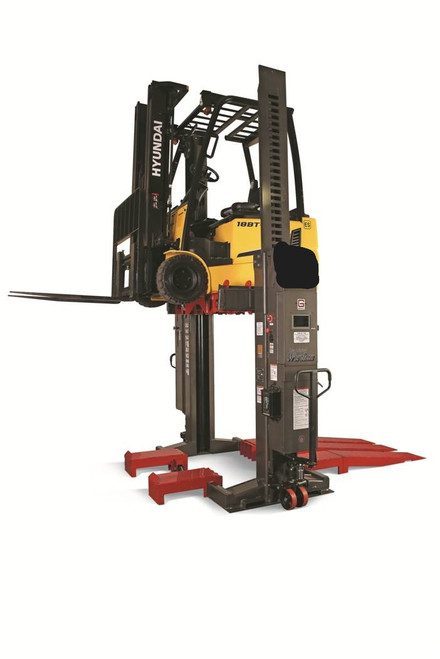

Made Specifically for use with the MAHLE Wireless Mobile Column Lifts
Click to download the CAD-15FCO Operating Manual
