Product Overview

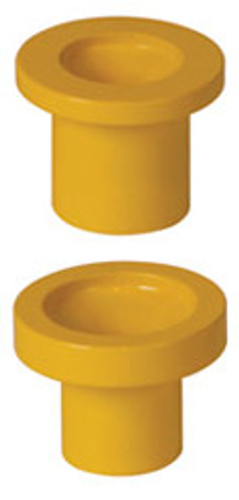

AT-JPR Jacking Point Receivers
Made of solid steel and powder-coated with a long-lasting yellow finish for easy spotting, these JPR Receivers have been designed to be put into the top of an A600 or A700 Series Aircraft Jack’s Inner Slide Tube, an AT-EB Extension Bar or the AT500-CA Conversion Adapter for the A500 Series. The AT-JPR1 is a 1.5″ x .187″ (38x5mm) pad with a .875″ (22mm) round Jacking Point receiving socket. The AT-JPR2 is a little larger with a 1.75″ x .375″ (44x10mm) pad with a 1.25″ (32mm) round receiving socket. Both have a 1″ x 1″ (25.25mm) round stem.
Both of the AT-JPR Jacking Point Receivers or a top-of-the-jack aircraft weighing Load Cell can quickly be put into the top non-threaded hole of an AT-EB Extension Bar.
